Thuis /Producten/Geborstelde kernloze motor/DC 3.4V Diameter 8mm Mini Helicopter Drone coreless electric motor

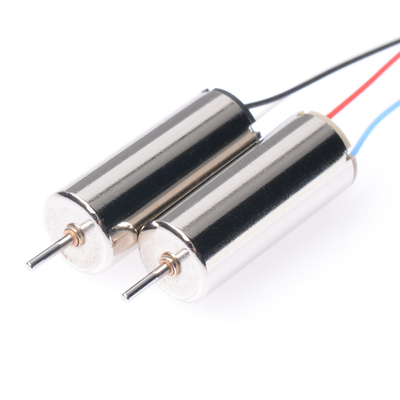

DC 3.4V Diameter 8mm Mini Helicopter Drone coreless electric motor

100 Pieces
MOQ
$0.87(100 - 999 Pieces) $0.86(>=1000 Pieces)
Prijs
DC 3.4V Diameter 8mm Mini Helicopter Drone coreless electric motor
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: OTHER
Model Number: MD0820
Usage: DIVERSE
Type: Brush Motor
Torque: 6.12 g.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: DRIP-PROOF
Speed(RPM): 38000
Continuous Current(A): 0.15
Efficiency: IE 2
Operating Voltage: 0.8~3.7 V
Starting Voltage: 0.6 V
Rotation Direction: CW/CCW
No Load Current: 150 mA Max
Stall Current: 5.58 A Max
Stall Torque: 43 g.cm
Load Current: 914 mA
Terminal Resistance: 0.6 ±5% Ω
Torque Constant: 8 g.cm
Certificering: CE
Basis informatie
Certificering: CE
Model Number: MD0820
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Packaging :Polystyrene / Hard paper box / water proof layer
Supply Ability: 20000 Piece/Pieces per Month
Productomschrijving
Product information

MD0820 DC permanent magnet coreless brush motor

Customization service and OEM are acceptable
Rated Voltage
Output At Max.Efficiency
No Load Current
No Load Speed
Weight
3.4 V
2 W
150 mA Max
38000 ± 12% Rpm
About 5g
Certifications
Shipping & Packing
Company Profile
Wingfong Industry is a professional DC motor designer and manufacturer in inland China, our featured products are comprised of coreless brush motor,dual-shaft motor,vibration motor, drive motor,brushless motor etc. Which have been widely used in products from household, commercial and industrial,compare to those coastal competitors we have advantages of lower cost of labour,management and raw material which makes our products more competitive.
