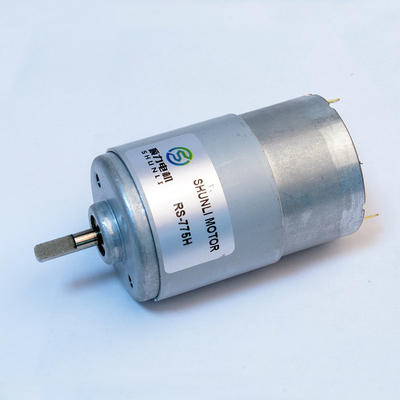

High Torque 12V 24V 36V 40V 48V Totally Enclosed Permanent Magnet Brushed DC Motor

100 Pieces
MOQ
$2.78(100 - 999 Pieces) $2.46(1000 - 4999 Pieces) $2.28(5000 - 9999 Pieces) $1.98(>=10000 Pieces)
Prijs
High Torque 12V 24V 36V 40V 48V Totally Enclosed Permanent Magnet Brushed DC Motor
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: 3months-1year
Model Number: RS-775A
Usage: Car, Electric Bicycle, FAN, Home Appliance, High torque 12V 24V 36V 40V 48V Permanent Magnet Brushed Dc Motor
Type: Micro Motor
Torque: 500g.cm-4000 g.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Speed(RPM): 3000rpm-25000rpm
Continuous Current(A): 0.3A-5A
Efficiency: IE 1
Product Name: RS-775A
Keywords: micro dc motor
Rated Voltage: 6V-24V
Rated Speed: 3000rpm-25000rpm
Typical Applications: Automatically machine
Shaft diameter: 5mm
Diameter: 45mm
Material: Magnets
Brush Type: Brush
Shaft type: Customized
Certificering: CCC, ce, RoHS, VDE, High torque 12V 24V 36V 40V 48V Permanent Magnet Brushed Dc Motor
Basis informatie
Certificering: CCC, ce, RoHS, VDE, High torque 12V 24V 36V 40V 48V Permanent Magnet Brushed Dc Motor
Model Number: RS-775A
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Polyfoam inside, strong export carton box outside, with pallet, or as the customer wished. High torque 12V 24V 36V 40V 48V Permanent Magnet Brushed Dc Motor
Productomschrijving

Product Description

High torque 12V 24V 36V 40V 48V Permanent Magnet Brushed Dc Motor

Product Details

Motor Customized Specification, Please contact me.

Reference Drawing

------ RS - 755 H

------ RS - 775 H

The length of shaft can be customized, Please contact me.

PMDC MOTOR Technical Date

Model

Rated Voltage (V)

No-Load

Rated

Stall

Operating Range

Nominal

Speed

Current

Speed

Current

Torque

Power

Current

Torque

RPM

A

RPM

A

mN.m / gf.cm

W

A

mN.m / gf.cm

RS-770H

8523R

6.0~12.0

12 VDC

15000

2.2

13177

15.91

81/826.2

111.8

115

666.9/6802

RS-775H

25110R

6.0~24.0

24 VDC

3478

0.15

2925

0.75

44.4/452.9

13.35

4.07

245.7/2506

Certification

Our Company

Shenzhen Shunli Motor Co. Ltd has been established in 2005. It's a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.

FAQ

1.Q: Are you trading company or manufacturer?

A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

2.Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

3.Q: I can't find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer's requirements.

4.Q: Do you have certificates for the motors?

A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

5.Q: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
