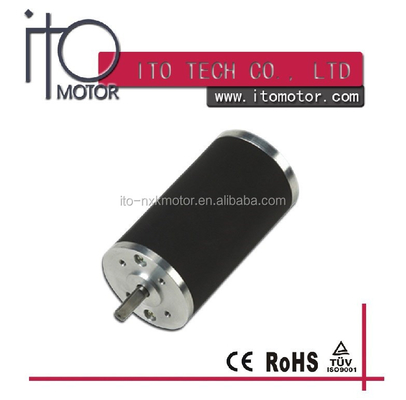

63zyt Drip Proof Micro High Torque Brushed DC Electric Motor 12 Volt 24 Volt 36 Volt 48 Volt, Power 50w, 100w to 500w

100 Pieces
MOQ
63zyt Drip Proof Micro High Torque Brushed DC Electric Motor 12 Volt 24 Volt 36 Volt 48 Volt, Power 50w, 100w to 500w
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: IBL-63ZYT
Voltage(V): 12-48V
Output Power: 10-90W
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, Automatic system
Type: Micro Motor
Torque: 13-27N.m
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Drip-proof
Speed(RPM): 2000-4000RPM
Continuous Current(A): 3-9A
Efficiency: IE 1
Certificering: ce, RoHS
OD of 12V permanent magnet dc motor: 63mm
power: dc
voltage: adjustable
torque: high torque
motor: dc brush motor
speed: tailor-made speed
shaft: tailor-made
Basis informatie
Certificering: ce, RoHS
Model Number: IBL-63ZYT
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Bubble chamber/ PE foam/ Color box/ Carton box/ Wooden box
Supply Ability: 5000 Piece/Pieces per Month
Productomschrijving

12V/24V/36V 64mm 3000RPM Permanent Magnet DC Pump Motor :

.Encoder possible
·Internal capacitors or varister.
·DC Motor Voltage and speed adjustment by winding change
·Modification of shaft length of motor
·Modification of shaft configuration (flat, hole, knurling, rear shaft etc.)
·Assembly of gears, vibrators, pulley, etc.
·Ball bearing available.

· Replace of Dunker Motor, MCG Motor, EBM Motor, Buehler Motor, Ametek motor.

Spec. of 12V/24V/36V 64mm 3000RPM Permanent Magnet DC Pump Motor

ModelRated VoltageNo-load SpeedNo-load CurrentRated TorqueRated SpeedRated CurrentRated OutputBack EMFRotor InertiaMotor LengthWeight
Vr.p.m.AN.cmr.p.m.AWV/Krpmg.cm²mmKg
IPM-65ZYT011236000.613.731005.244.53.30.20951.2
IPM-65ZYT022436000.361432002.746.96.60.20951.2
IPM-65ZYT031235000.82430008.7753.40.371251.7
IPM-65ZYT042436500.42733505.50956.50.371251.7

Dimensions of 12V/24V/36V 64mm 3000RPM Permanent Magnet DC Pump Motor

Other Views of 12V/24V/36V 64mm 3000RPM Permanent Magnet DC Pump Motor

Production line of permanent magnet 12v dc Motor

Certificate of permanent magnet 12v dc Motor

Welcome to customizate different Motor from ITO motor.
